Hydraulic Turbine Design Software |
 TURBOdesign Suite

The inverse design method can be applied to hydraulic turbines. Our software enables design of high efficiency stages at multiple operating points with direct control of cavitation.




Our TURBOdesign Suite software applies the 3D Inverse Design method to the design of hydraulic turbines. Using 3D Inverse Design will allow you to optimize performance, increase component and stage efficiency, and reduce development time.


Breakthrough Runner, Spiral Casing and Vane Designs



The 3D Inverse Design method allows direct control of the 3D flow field, so can be used to eliminate regions of potential cavitation or separation throughout the stage in all the stationary and rotating components. This can lead to significant performance improvements and the mitigation of component damage, instability or vibration.

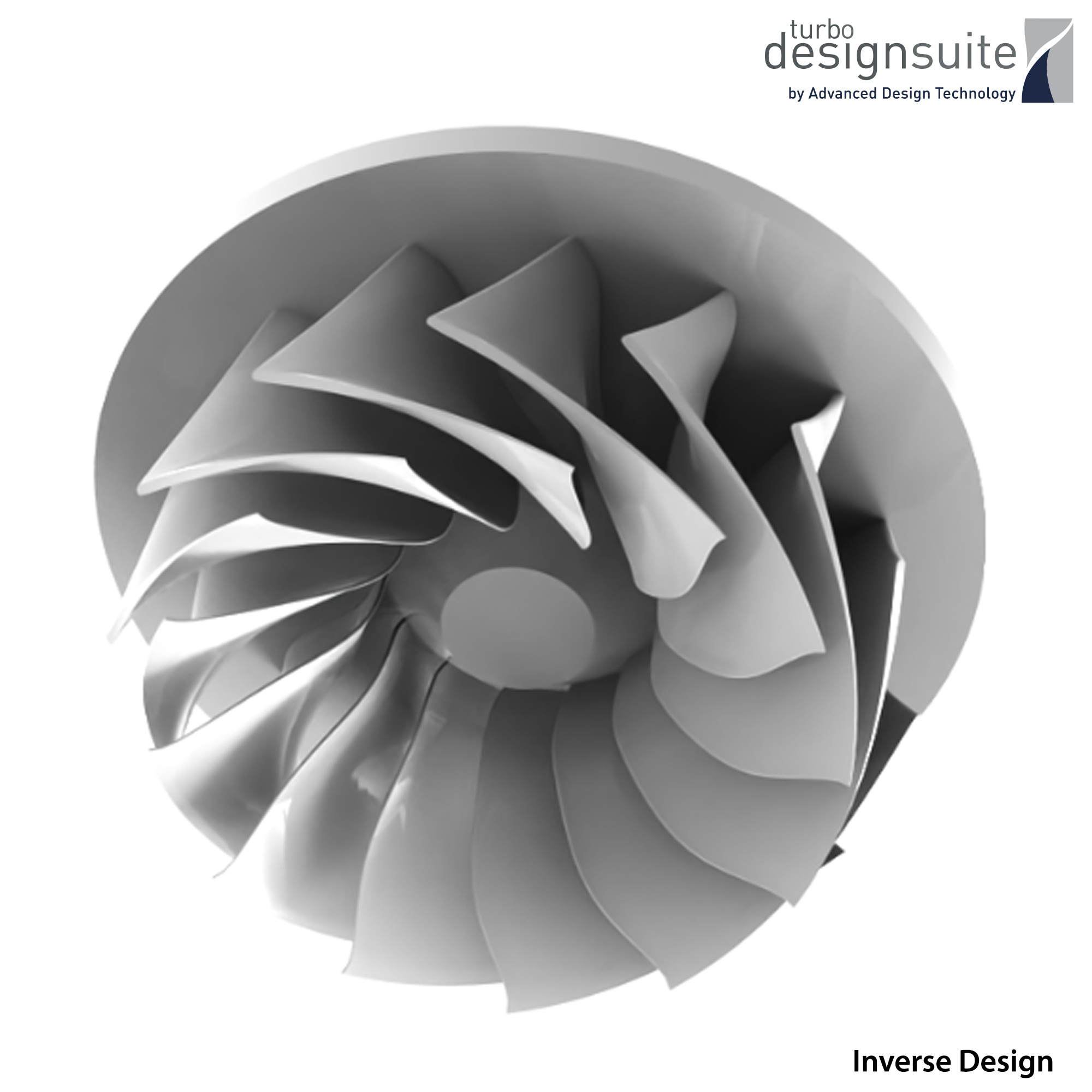

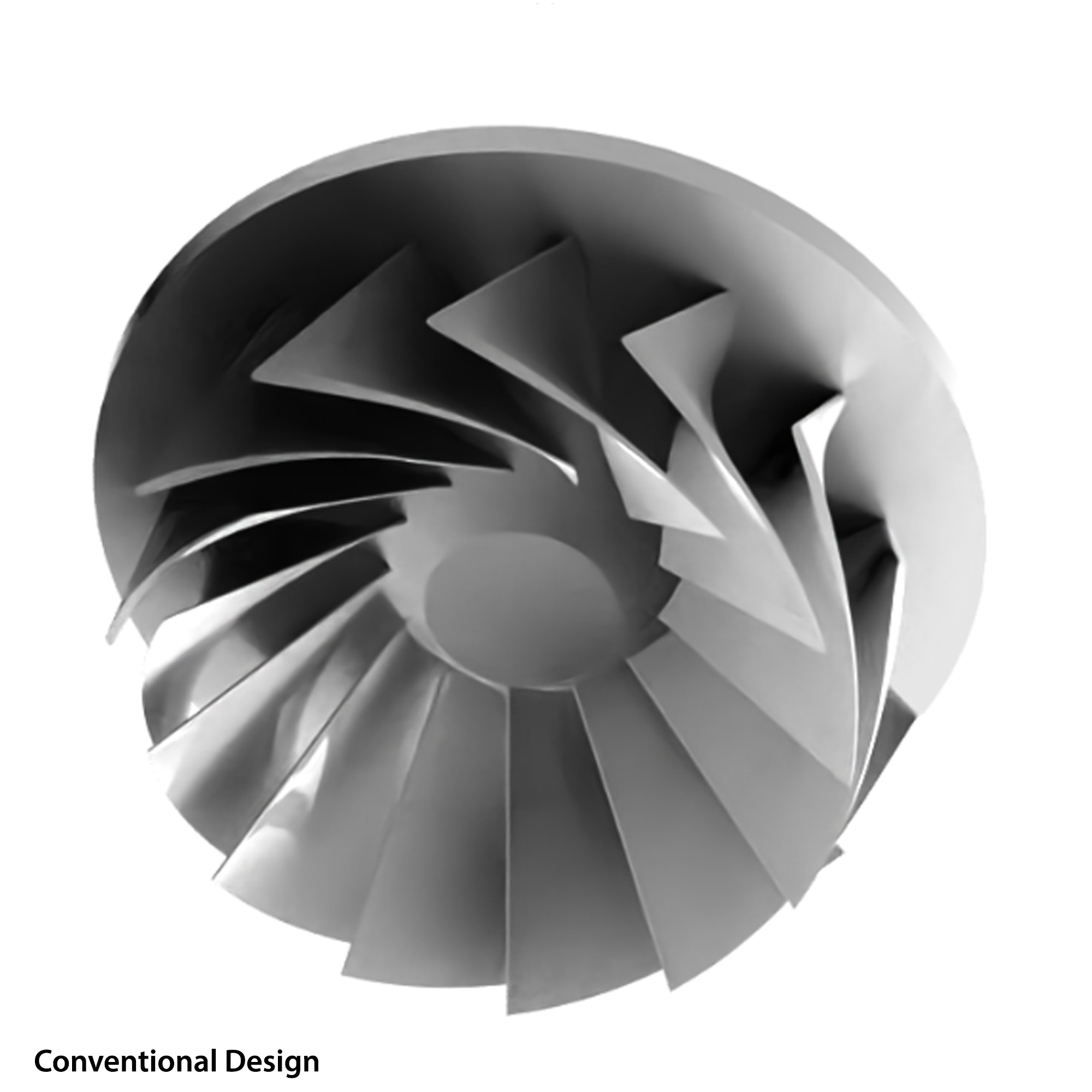

See below a comparison between conventional design versus 3D Inverse Design
